TLV2374IDRWhiteGoods• HandheldTestEquipment• PortableBloodGlucoseSystems• RemoteSensing• ActiveFilters•

Name: TLV2374IDRWhiteGoods HandheldTestEquipment PortableBloodGlucoseSystems RemoteSensing ActiveFilters
Brand: Texas Instruments
Price: 1 USD

Quality TLV2374IDRWhiteGoods• HandheldTestEquipment• PortableBloodGlucoseSystems• RemoteSensing• ActiveFilters• wholesale

Brand Name : Texas Instruments

Model Number : TLV2374IDR

Certification : ROHS

Place of Origin : Mexico

MOQ : 10PCS

Price : NEGOTIABLE

Payment Terms : T/T, Western Union

Supply Ability : 20000PCS/WEEK

Delivery Time : 2-3DAYS

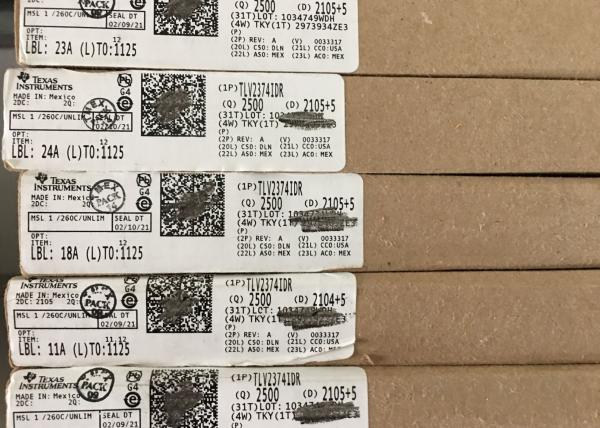

Packaging Details : 2500PC/REEL

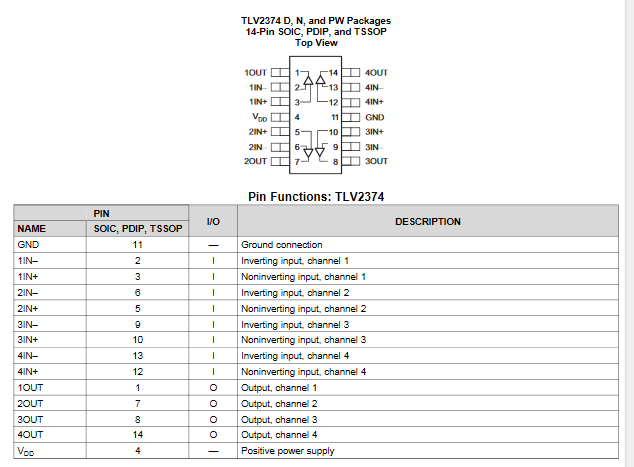

Package / Case : SOIC-14

Output Current per Channel : 16 mA

Vos - Input Offset Voltage : 4.5 mV

Minimum Operating Temperature : - 40 C

Maximum Operating Temperature : + 125 C

Ib - Input Bias Current : 60 pA

Operating Supply Current : 750 uA

CMRR - Common Mode Rejection Ratio : 84 dB

Amplifier Type : General Purpose Amplifier

Height : 1.58 mm

Input Type : Rail-to-Rail

Length : 8.65 mm

Output Type : Rail-to-Rail

Supply Type : Single, Dual

Width : 3.91 mm

Dual Supply Voltage : +/- 3 V, +/- 5 V

In - Input Noise Current Density : 0.0006 pA/sqrt Hz

Maximum Dual Supply Voltage : +/- 8 V

Minimum Dual Supply Voltage : +/- 1.35 V

Operating Supply Voltage : 2.7 V to 16 V, +/- 1.35 V to +/- 8 V

Pd - Power Dissipation : 1022 mW

PSRR - Power Supply Rejection Ratio : 70 dB

Voltage Gain dB : 110 dB

Factory Pack Quantity : 2500

Contact Now

1.Features
1• Rail-to-RailInputand Output
• WideBandwidth:3 MHz
• HighSlewRate:2.4 V/μs
• SupplyVoltageRange:2.7 V to 16 V
• SupplyCurrent:550μA/Channel
• Low-PowerShutdownMode– IDD(SHDN): 25μA/Channel
• InputNoiseVoltage:39 nV/√Hz
• InputBiasCurrent:1 pA
• SpecifiedTemperatureRange:–−40°C to +125°C (IndustrialGrade)
• Ultra-SmallPackaging:– 5- or 6-PinSOT-23(TLV2370,TLV2371)– 8- or 10-PinMSOP(TLV2372,TLV2373

2.Applications
• WhiteGoods
• HandheldTestEquipment
• PortableBloodGlucoseSystems
• RemoteSensing
• Active Filters
• IndustrialAutomation
• Battery-PoweredElectronics

TLV2374IDRWhiteGoods• HandheldTestEquipment• PortableBloodGlucoseSystems• RemoteSensing• ActiveFilters•

3.Description
TheTLV237xsingle-supplyoperationalamplifiersproviderail-to-railinputandoutputcapability.TheTLV237xtakesthe minimumoperatingsupplyvoltagedownto 2.7V overtheextendedindustrialtemperaturerangewhileaddingthe rail-to-railoutputswingfeature.TheTLV237xalsoprovides3-MHzbandwidthfromonly550μA. Themaximumrecommendedsupplyvoltageis 16 V, whichallowsthe devicesto be operatedfrom(±8-V suppliesdownto ±1.35V) a varietyof rechargeablecells.
TheCMOSinputsenableusein high-impedancesensorinterfaces,withthe lowervoltageoperationmakingan idealalternativefor the TLC227xinbattery-poweredapplications.Therail-to-railinputstagefurtherincreasesits versatility.The TLV237xisthe seventhmemberof a rapidlygrowingnumberofRRIOproductsavailablefromTI, and it is the first toallowoperationup to 16-Vrailswithgoodacperformance.

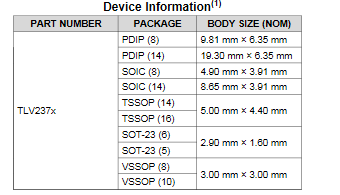

All membersare availablein PDIPand SOICwith thesinglesin the smallSOT-23package,dualsin theMSOP,and quadsin the TSSOPpackage.
The 2.7-Voperationmakesthe TLV237xcompatiblewith Li-Ionpoweredsystemsand the operatingsupplyvoltagerangeof manymicro-powermicrocontrollersavailabletodayincludingTI’s MSP430

TLV2374IDRWhiteGoods• HandheldTestEquipment• PortableBloodGlucoseSystems• RemoteSensing• ActiveFilters•
