MP9361DJ-LF-Z 100mA LED Lighting Drivers Charge Pump Converter

MP9361DJ-LF-Z LED Lighting Drivers High Performance Regulated Charge Pmp

1.DESCRIPTION

The MP9361 is a high performance, regulated charge pump converter. Its input voltage ranges from 2.8V to Vout. The output voltage is regulated to a fixed 5V. No external inductor is required for simplicity and compactness. Internal soft-start circuit effectively reduces the in-rush current both while start-up and mode change. The MP9361 is available in a compact TSOT23-6 package

2.FEATURES
 Input Voltage Range: 2.8V to 5V
 Internal Soft-Start
 Output Maximum Current up to 110mA
 Fixed 5V Output Voltage with 30mV Ripple
 2X Charge Pump
 Fixed 1.35MHz Switching Frequency
 Over Current Protection
 Short Circuit Protection
 In-rush Current limit
 TSOT23-6 package and Lead (pb)-Free

3.APPLICATIONS
 Cell phone, Smart phone, LED backlight
 PDA or hand Held Computer
 Camera Flash White LED
 LCD Display Supply
 TV-Remote Control

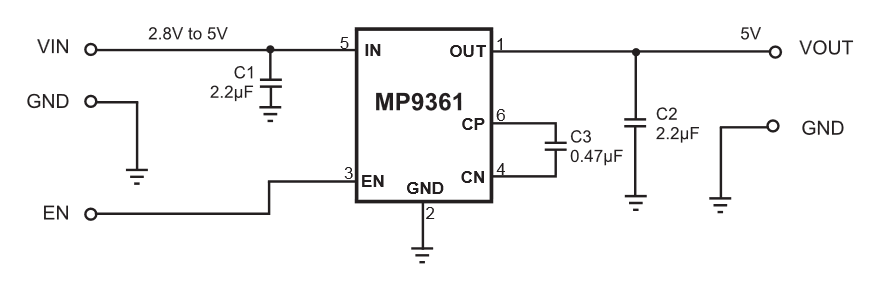

4.TYPICAL APPLICATION

5.Why choose us?

100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service

MP9361DJ-LF-Z LED Lighting Drivers

100mA LED Lighting Drivers

1.6MHz Regulated Charge Pump Converter

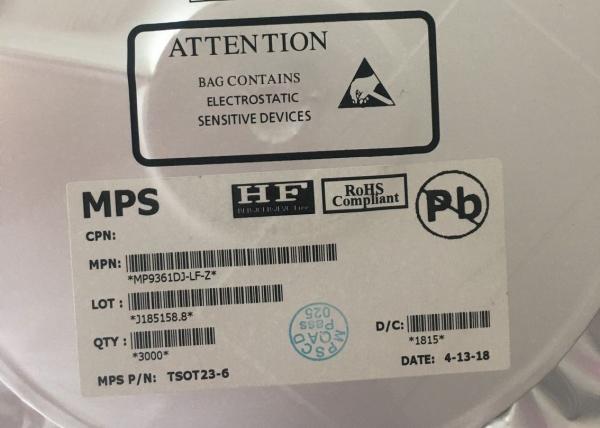

MP9361DJ-LF-Z 100mA LED Lighting Drivers Charge Pump Converter Images
