8 Bit 10mm Length 8MHz Microcontrollers MCU JTAG Microchip Atmel ATMEGA16L-8AU

Product Categories
Shenzhen Hongxinwei Technology Co., Ltd
Contact Now

8 Bit 10mm Length 8MHz Microcontrollers MCU JTAG Microchip Atmel ATMEGA16L-8AU

  • 1
  • 2

Brand Name : Microchip Technology / Atmel

Model Number : ATMEGA16L-8AU

Certification : ROHS

Place of Origin : TW

MOQ : 10PCS

Price : NEGOTIABLE

Payment Terms : T/T, Western Union

Supply Ability : 480PCS/WEEK

Delivery Time : 2-3DAYS

Packaging Details : 160PCS/TRAY

Product Category : 8-bit Microcontrollers - MCU

Series : ATmega16

Program Memory Size : 16 kB

Data Bus Width : 8 bit

ADC Resolution : 10 bit

Maximum Clock Frequency : 8MHz

Number of I/Os : 32 I/O

Data RAM Size : 1 kB

Operating Supply Voltage : 2.7 V to 5.5 V

Minimum Operating Temperature : - 40 C

Maximum Operating Temperature : + 85 C

Height : 1 mm

Length : 10mm

Product : MCU

Program Memory Type : Flash

Width : 10 mm

Data RAM Type : SRAM

Data ROM Size : 512 B

Data ROM Type : EEPROM

Interface Type : JTAG, I2C, SPI, USART

Analog Supply Voltage : 2.7 V to 5.5 V

I/O Voltage : 2.7 V to 5.5 V

Number of ADC Channels : 8 Channel

Number of Timers/Counters : 3 Timer

Processor Series : megaAVR

Supply Voltage - Max : 5.5 V

Supply Voltage - Min : 2.7 V

Factory Pack Quantity : 160

Contact Now

ATMEGA16L-8AU Microchip Technology / Atmel 8-bit Microcontrollers - MCU 100% Original

1.Features
• High-performance, Low-power Atmel® AVR® 8-bit Microcontroller
• Advanced RISC Architecture
– 131 Powerful Instructions – Most Single-clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 16 MIPS Throughput at 16 MHz
– On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
– 16 Kbytes of In-System Self-programmable Flash program memory
– 512 Bytes EEPROM
– 1 Kbyte Internal SRAM
– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
– Data retention: 20 years at 85°C/100 years at 25°C(1)
– Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
– Programming Lock for Software Security
• JTAG (IEEE std. 1149.1 Compliant) Interface
– Boundary-scan Capabilities According to the JTAG Standard
– Extensive On-chip Debug Support
– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Peripheral Features
– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture
Mode
– Real Time Counter with Separate Oscillator
– Four PWM Channels
– 8-channel, 10-bit ADC
8 Single-ended Channels
7 Differential Channels in TQFP Package Only
2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
– Byte-oriented Two-wire Serial Interface
– Programmable Serial USART
– Master/Slave SPI Serial Interface
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-chip Analog Comparator
• Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal Calibrated RC Oscillator
– External and Internal Interrupt Sources
– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby
and Extended Standby
• I/O and Packages
– 32 Programmable I/O Lines

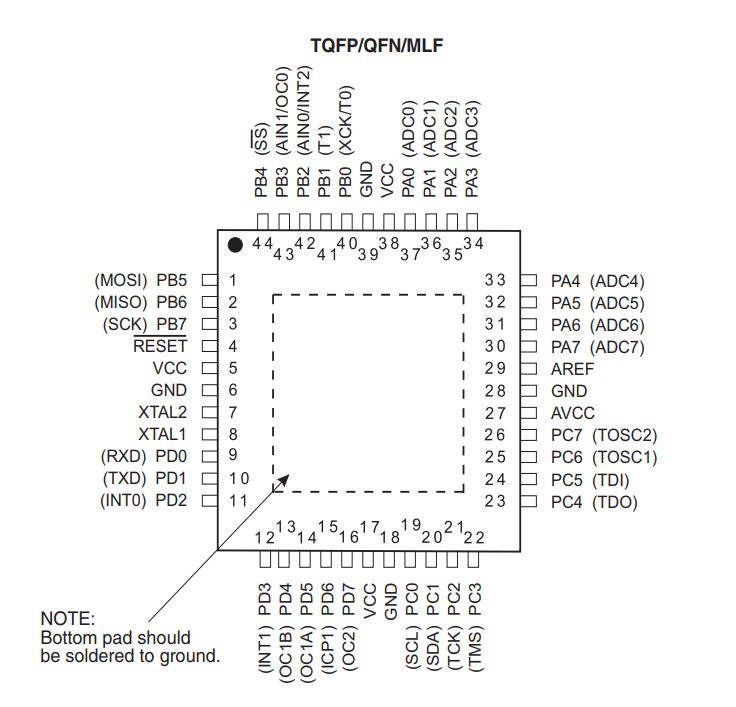

– 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF
• Operating Voltages
– 2.7V - 5.5V for ATmega16L
– 4.5V - 5.5V for ATmega16
• Speed Grades
– 0 - 8 MHz for ATmega16L
– 0 - 16 MHz for ATmega16
• Power Consumption @ 1 MHz, 3V, and 25°C for ATmega16L
– Active: 1.1 mA
– Idle Mode: 0.35 mA
– Power-down Mode: < 1 µA

2.8 Bit 10mm Length 8MHz Microcontrollers MCU JTAG Microchip Atmel ATMEGA16L-8AU

3.100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
