MT9P031I12STC-DP Image Sensors 5MP .5"
1.General Description
The ON Semiconductor MT9P031 is a 1/2.5−inch CMOSactive−pixel digital image sensor with an active imaging pixel array of2592 H x 1944 V. It incorporates sophisticated camera functionson−chip such as windowing, column and row skip mode, and snapshotmode. It is programmable through a simple two−wire serial interface.The 5 Mp CMOS image sensor features ON Semiconductor’sbreakthrough low−noise CMOS imaging technology that achievesCCD image quality (based on signal−to−noise ratio and low−lightsensitivity) while maintaining the inherent size, cost, and integrationadvantages of CMOS.
2.Applications
•High Resolution Network Cameras
•Wide FOV Cameras
•720 P–60 fps Cameras
•Dome Cameras with Electronic Pan, Tile, and Zoom
•Hybrid Video Cameras with HighResolution Stills
•Detailed Feature Extraction for SmartCameras
3.Features
•High Frame Rate
•Superior Low-light Performance
•Low Dark Current
•Global Reset Release, which Starts theExposure of All Rows Simultaneously
•Bulb Exposure Mode, for ArbitraryExposure Times
•Snapshot Mode to Take Frames on Demand
•Horizontal and Vertical Mirror Image
•Column and row skip modes to reduceimage size without reducing field−of−view(FOV)
•Column and Row Binning Modes toImprove Image Quality when Resizing
•Simple Two-wire Serial Interface
•Programmable Controls: Gain, Frame Rate,Frame Size, Exposure
Automatic Black Level Calibration
•On-chip Phase-Locked Loop (PLL)

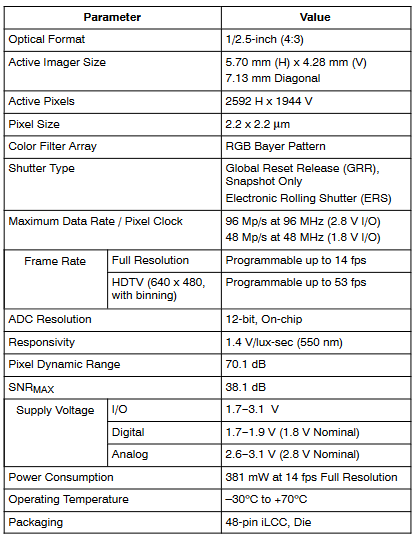

4.KEY PERFORMANCE PARAMETERS
5.Why choose us?
100% new and originao with Advantage price
High efficiency
Fast Delivery
Professional team service
10 Years Experience Electronic components
Electronic components Agent
Advantage logistic discount
Excellent After-sales Service
